LT16M
A mixed-signal test and debug station for embedded systems, as described in archived LogicTerm material.
Archived facts, not a current specification. All candidate capabilities below are pending current engineering confirmation. Availability, hardware revision, and operating limits are not established here.

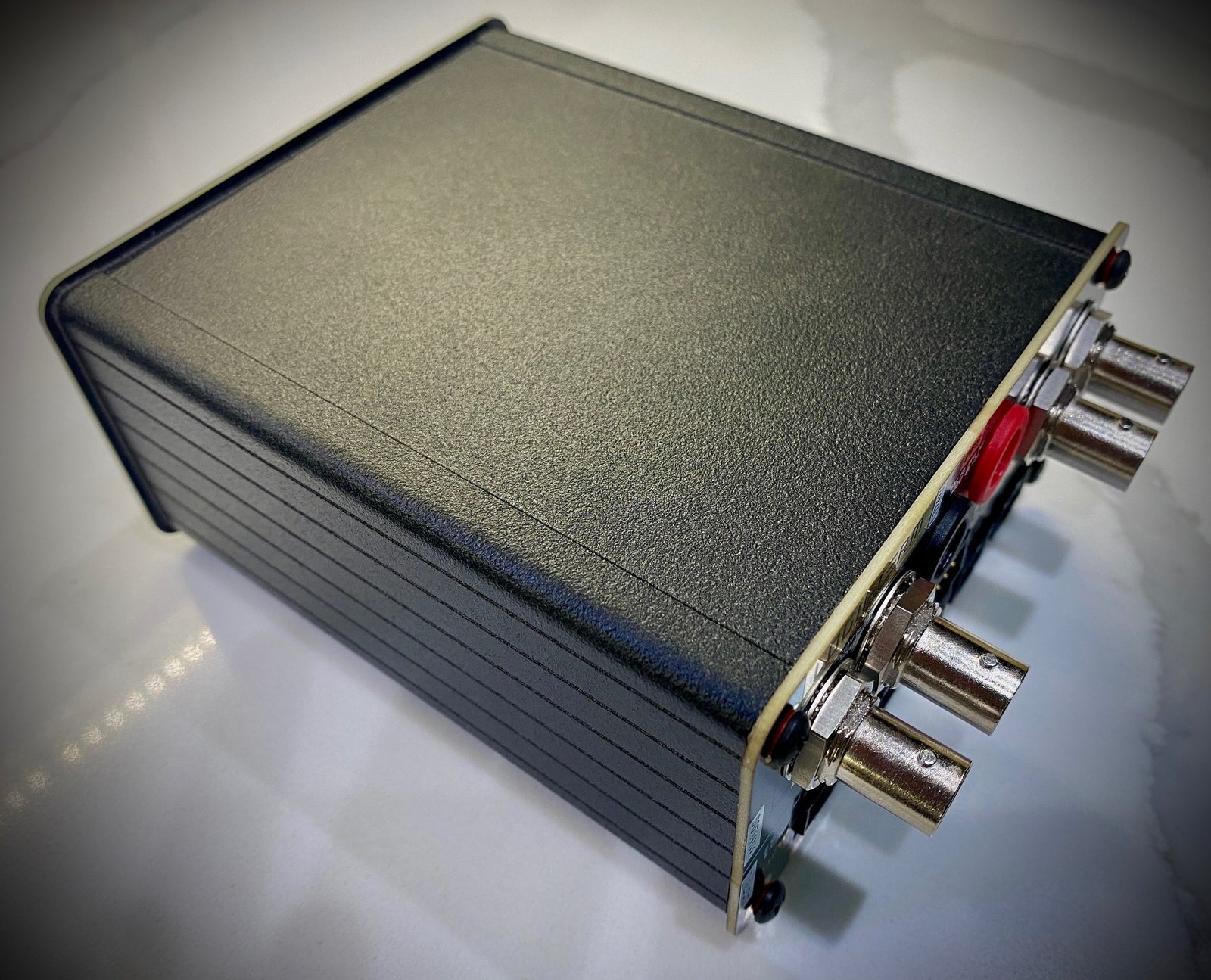

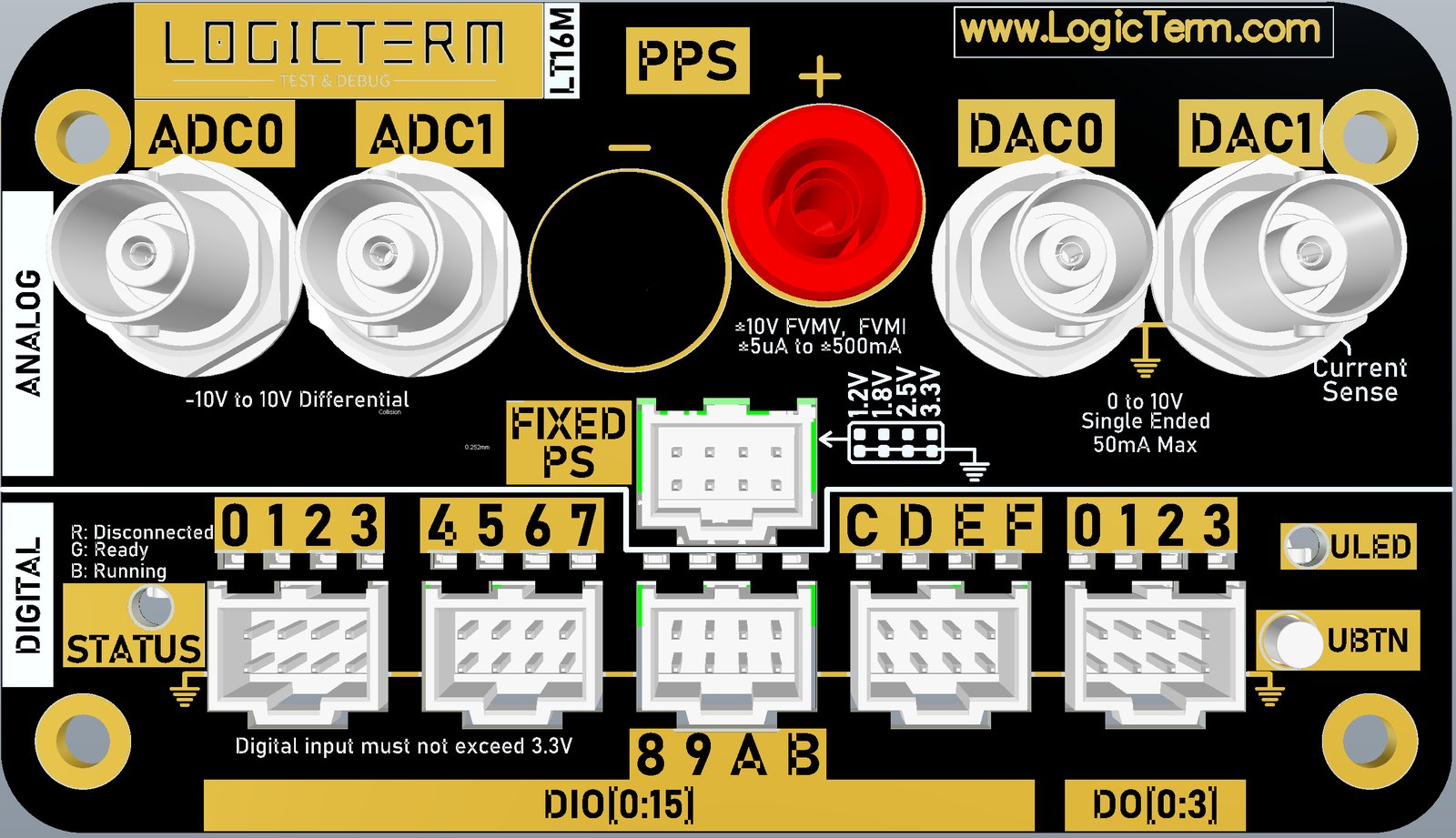

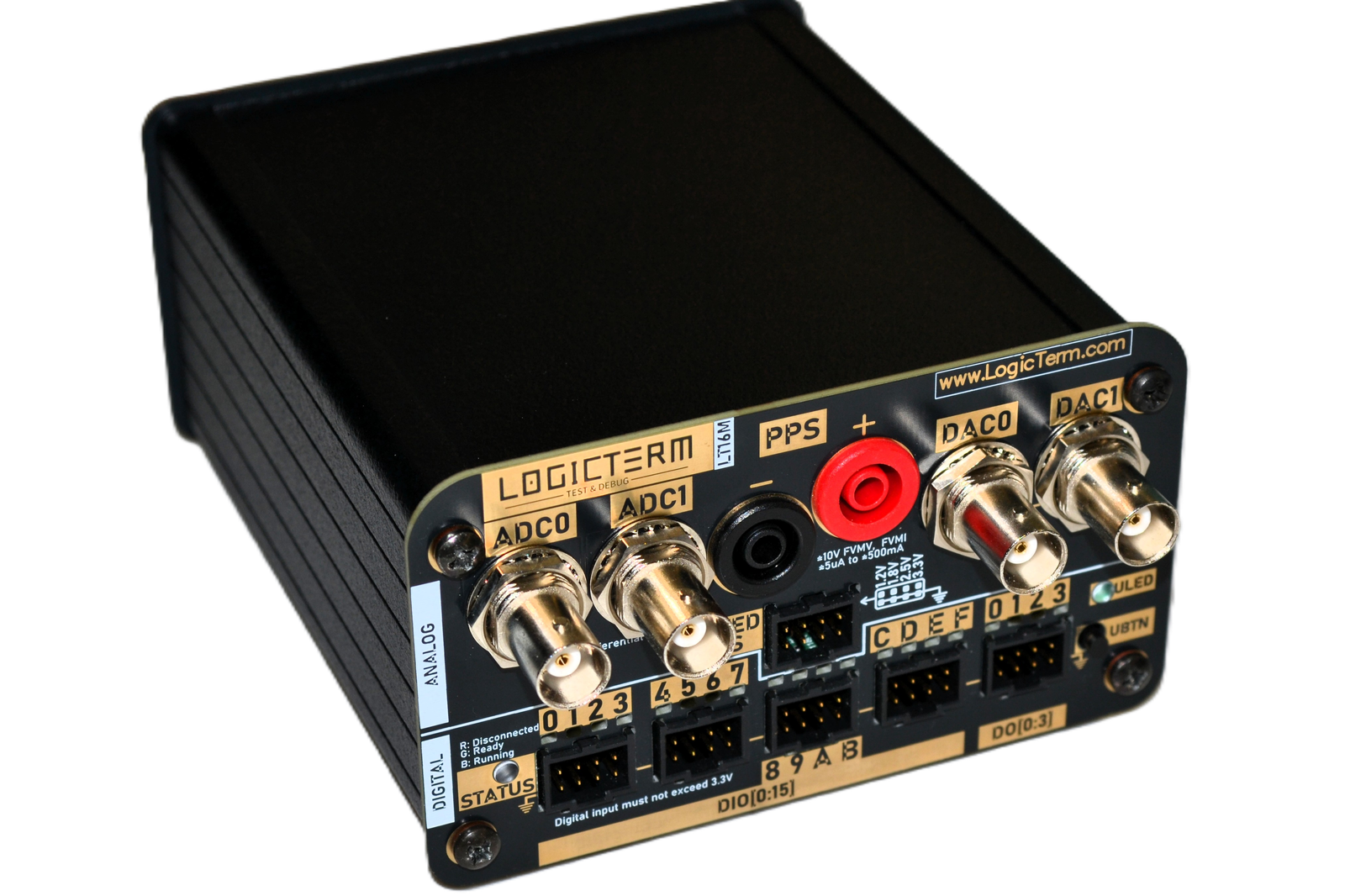

Product images
Candidate capabilities
The archived Technical Support page lists these instrument roles. They are review headings, not verified shipping features.
- Logic analyzer
- Pattern generator
- Oscilloscope
- Programmable power supply
- Automation engine
Two levels of workflow
Archived Home and About descriptions discuss deterministic digital patterns alongside higher-level Python scripting for automation, data handling, and visualization. Supported operations and limits require verification.
The website does not execute scripts or connect to hardware. Review text and current engineering documentation before any use outside this site.
Learn about the LTStudio desktop applicationEvidence and next steps
The product images above are from archived LogicTerm material. No numerical specifications are published here while technical review is pending.
